AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS400M-36/BX5AC/DC CONVERTER 36V 250W |
2,208 |
|
Datasheet | CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 6.94 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.57" L x 3.36" W x 1.61" H (141.6mm x 85.3mm x 40.8mm) |
|
|
CUS400M-19/BX5AC/DC CONVERTER 19V 250W |
3,424 |
|
Datasheet | CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 13.16 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.57" L x 3.36" W x 1.61" H (141.6mm x 85.3mm x 40.8mm) |
|
ZWQ80-5224/AAC/DC CNVRTR 5V +/-12V 24V 80W |
4,903 |
|
Datasheet | ZWQ (80W) | Bulk | Active | Enclosed | 4 | 85 ~ 265 VAC | 5V | 12V | -12V | 24V | - | - | 8 A | 2 A | 2 A | 1.5 A | - | - | 80W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) |
|
CUS400M-15/AX5AC/DC CONVERTER 15V 250W |
4,106 |
|
Datasheet | CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) |
|
|
CUS400M-28/AX5AC/DC CONVERTER 28V 250W |
1,261 |
|
Datasheet | CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 8.93 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) |
|
|
CUS400M-36/AX5AC/DC CONVERTER 36V 250W |
4,986 |
|
Datasheet | CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 6.94 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) |
|
EVS36-8R4AC/DC CONVERTER 36V 300W |
4,150 |
|
Datasheet | EVS (300/600W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) |
|

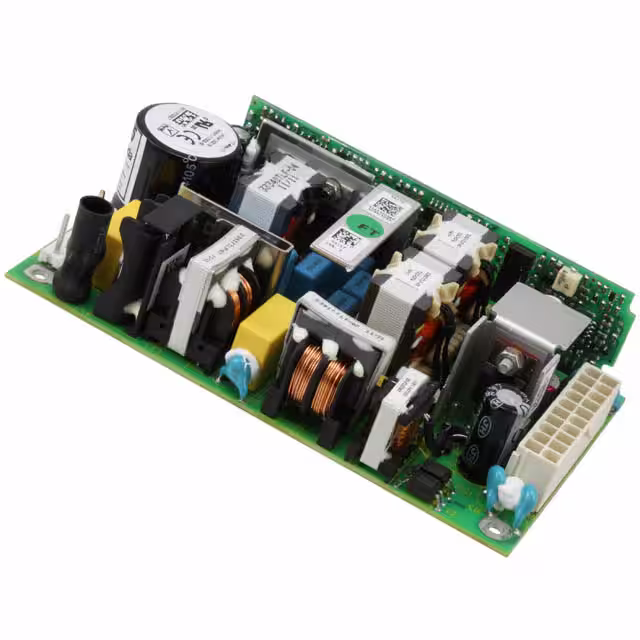

NVM100015AC/DC CONVERTER 12V 180W |
4,789 |
|
Datasheet | NVM175 (180W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W | Medical | 4.5 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 5.00" L x 3.00" W x 1.02" H (127.0mm x 76.0mm x 26.0mm) |
|
JWT75-522AC/DC CONVERTER 5V +/-12V 75W |
2,497 |
|
Datasheet | JWT (75W) | Bulk | Not For New Designs | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 4 A | 500 mA | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm) |
|
|
JWT75-5FFAC/DC CONVERTER 5V +/-15V 75W |
1,117 |
|
Datasheet | JWT (75W) | Bulk | Not For New Designs | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 3.2 A | 500 mA | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm) |
